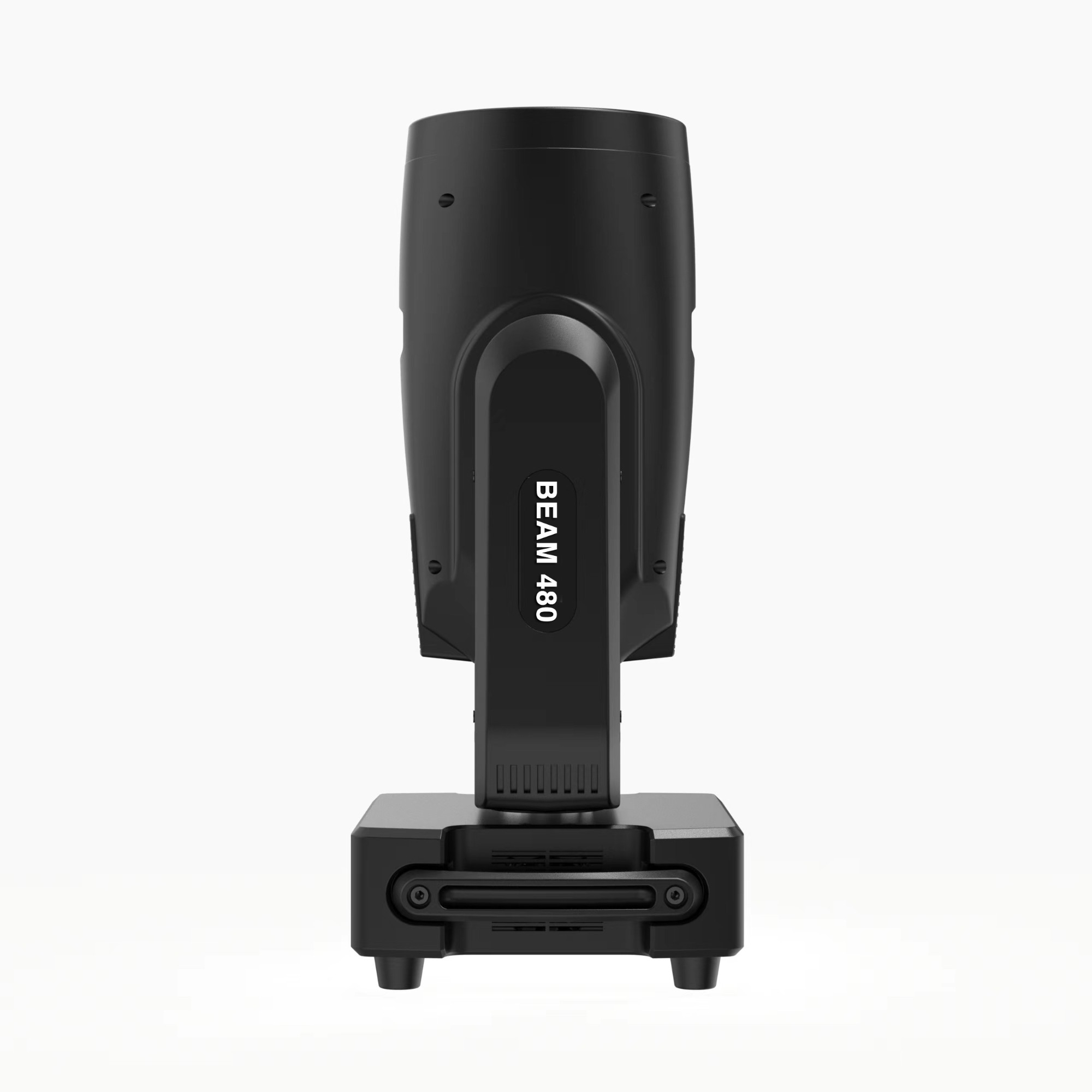

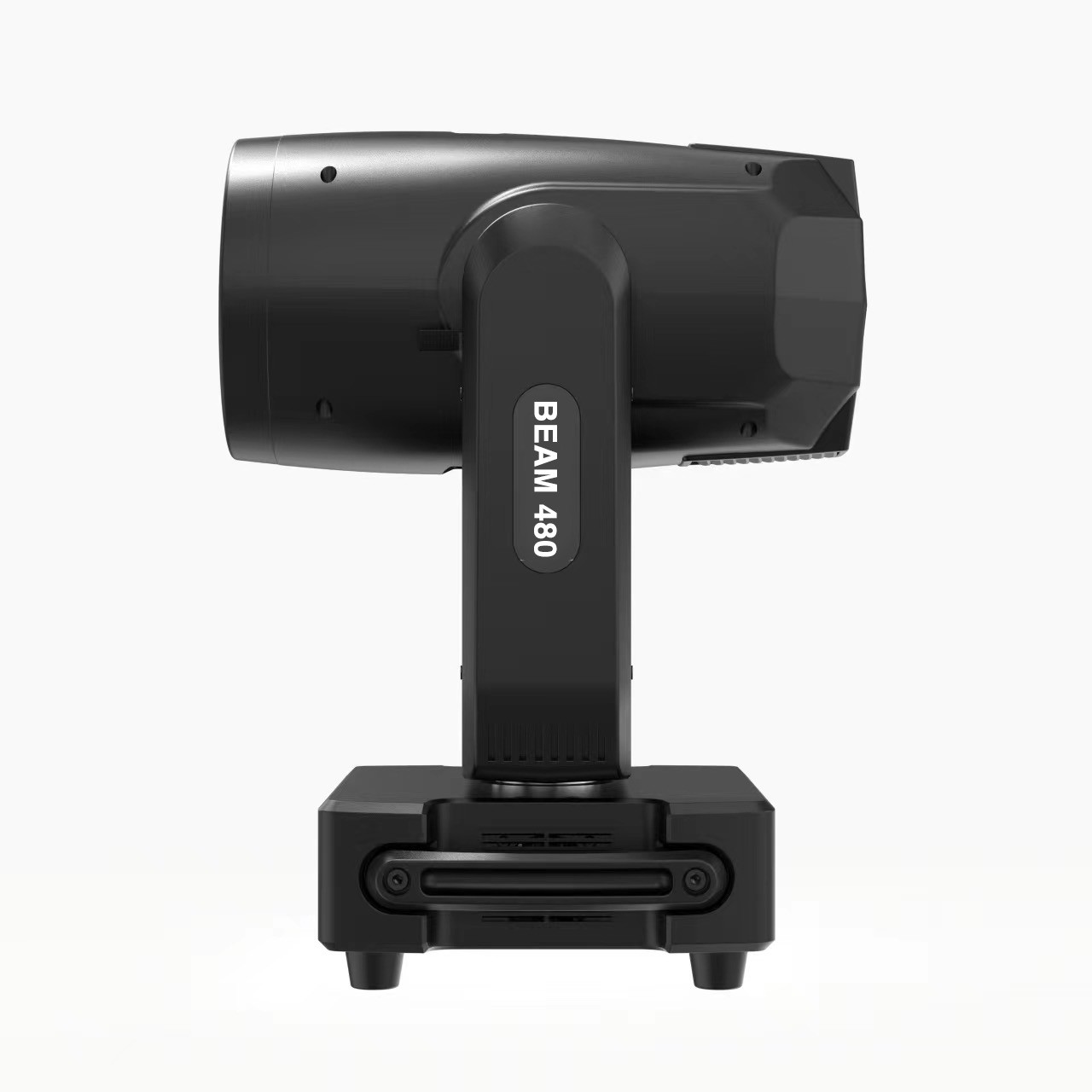

THE 480 BEAM MOVER

THE 480 BEAM MOVER

• Power supply: AC100-240V, 50/60Hz

• Total power: 700W

• Bulb model: Philips 420W/Bull Tail Bubble 420W/

• The luminous flux is 7950lm, and the color temperature can reach 8500K

• Output aperture: 180mm MA

• Ballast: Electronic Inductive Ballast

• Control mode: DMX512/WMDMX/self-propelled

• Channel: 16 channels

• Beautiful dot matrix display with four light touch switches, capable of reversing 180 ° display

• Color Plate: A color plate, each consisting of 14 color chips+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect.

• Pattern disc: Fixed pattern disc, 14 pattern effects+white light

• Prism: 48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotated independently in both directions

• Bidirectional rotation, adjustable rotation speed.

• Focusing: Linear focusing, from near to far.

• Equipped with atomization function and adjustable atomization speed.

• 0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function, mechanical strobe is 1-12 F.P.S.

• A color palette, each consisting of 14 color patches+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect

• Adopting a photoelectric reset system, it can automatically retrieve the reset in case of accidental misoperation

• Horizontal 540 °, 8Bit/16Bit fine tuned

• Vertical 270 °, 8Bit/16Bit fine tuned

• Equipped with horizontal and vertical fine automatic error correction functions.

• Overheat protection

• IP protection level: IP20

• AC/DC switch power supply.

• LCD display screen.

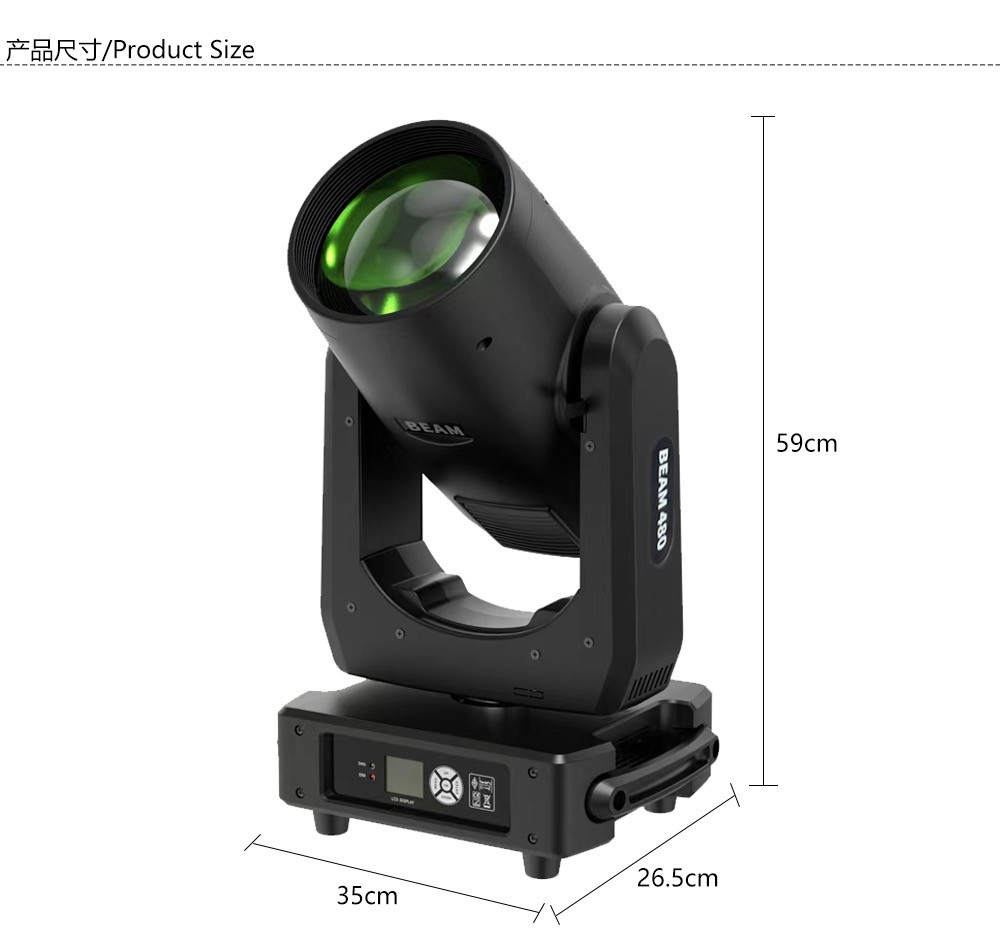

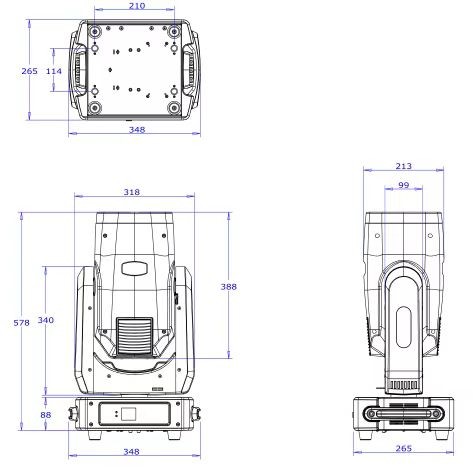

• Size: 280 x 265 x 650mm

• Net weight: 17.5Kg

• Packaging size: 580 * 460 * 420mm
