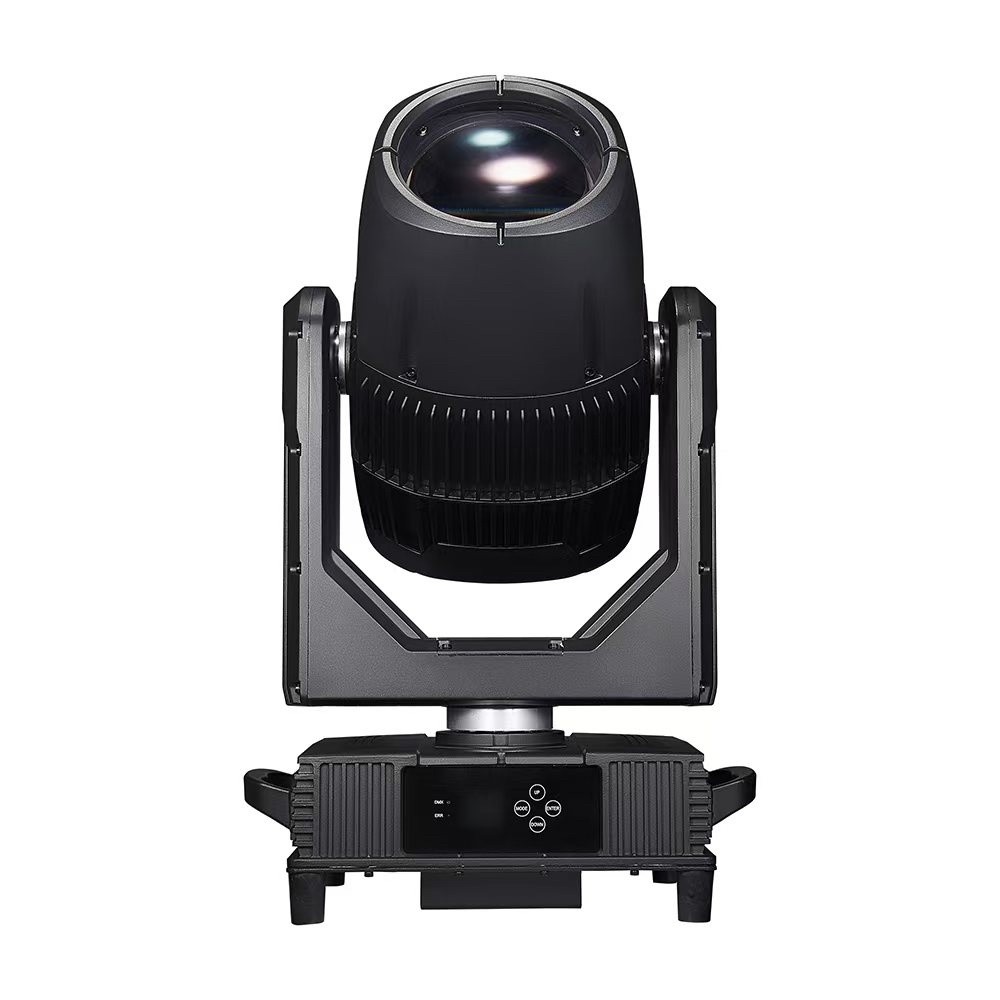

THE IP66 461 SUPER BEAM

Technical Specifications

• Voltage: Wide Voltage AC90V-235V, 50-60Hz

• Power Supply: 800W High-Efficiency Drive Power

• Light Source: OSRAM 461W

• Color Temperature: 7900K ± 500K

• Color System: 14 Colors + Open (White)

• Gobo System: 17 Static Gobos + Open (White)

• Focus: Electronic Linear Focus

• Frost: Independent Frost Filter for soft-edge wash effects

• Strobe: Dual-motor independent strobe, 0.5–20 flashes/sec (adjustable speed)

• Motors: 3-Phase XY Motors (High stability, ultra-fast movement, and precise positioning)

• Dimming: 0%–100% Linear Dimming (Smooth and flicker-free)

• Beam Angle: 0°–2° (Sharp, concentrated beam)

• DMX Channels: Dual channel modes (16CH or 20CH)

• Lens Diameter: 165mm Large Diameter Optics

• IP Rating: IP66 (Fully waterproof and dustproof)

• Control Modes: DMX 512, Auto-run, Master/Slave, RDM (Supports remote DMX addressing via large controllers)

• Prism System: 8-Facet Prism + (8+16) Honeycomb Prism (Customizable options available)

• Display: 180° Reversible LCD Display (Adapts to different mounting positions)

• Pan/Tilt: High-precision 3-phase motors with automatic position correction

• Pan: 540° (8/16-bit resolution) with Fine adjustment

• Tilt: 270° (8/16-bit resolution) with Fine adjustment

• Cooling System: Intelligent fan-assisted airflow. Software-analyzed heat convection design ensures rapid heat dissipation, minimizing light decay and extending lamp life. Low-noise operation.

• Housing: Die-cast Aluminum + Outdoor Engineering Plastics

• Installation: Upright or Inverted (Hanging)

• Dimensions: 43 x 26 x 63 cm

• Weight: NW: 25kg | GW: 29kg
